TRANSISTOR IGBT N-CHANNEL THT

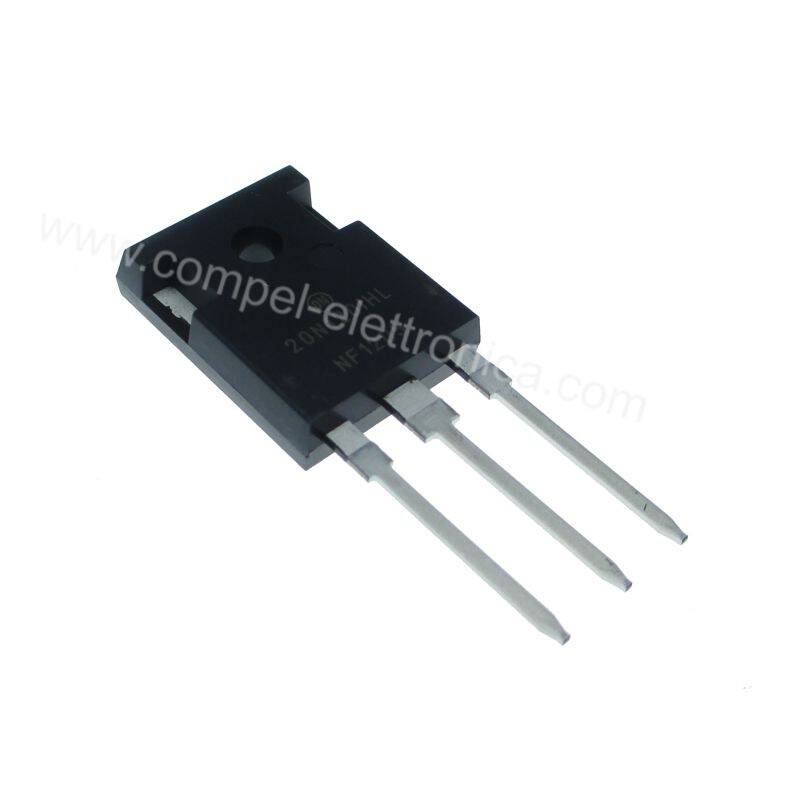

20N120IHL N-CHANNEL IGBT DIODE 1200V 40A 192W TO-247 ORIGINALI
20N120IHL N-CHANNEL IGBT DIODE 1200V 40A 192W TO-247 ORIGINALI
CODICE: 20N120IHL
Prezzi Iva Inclusa
1 PZ
€ 5,9292
3 PZ
€ 4,8312
Scheda Tecnica
Articolo: 20N120IHL
Descrizione: Transistor (IGBT) features a robust and cost effective Field Stop (FS) Trench construction
and provides superior performance in demanding switching applications
offering both low on-state voltage and minimal switching loss.
Incorporated into the device is a rugged co-packaged free wheeling diode with a low forward voltage.
Tensione: 1200 V
Corrente: 40 A
Dissipazione: 192 W
Contenitore: TO-247
Articolo similare: H2100-2 - 400R21 - 40QR21
Marking: 20N120IHL
Produttore: ON - MOTOROLA
Applicazioni / Application: FORNELLO / PIANO PIASTRA AD INDUZIONE
Inductive Heating
Consumer Appliances
Soft Switching
Nota informativa:
I dati presenti in questa scheda sono solo indicativi.
Per informazioni piu precise consultare i dati del produttore.
These Scheda Tecnica are indicative only, for more precise information look in the data producer.
NGTB20N120IHLWG
