RELÈ ELETTROMAG.STANDARD 24Vdc

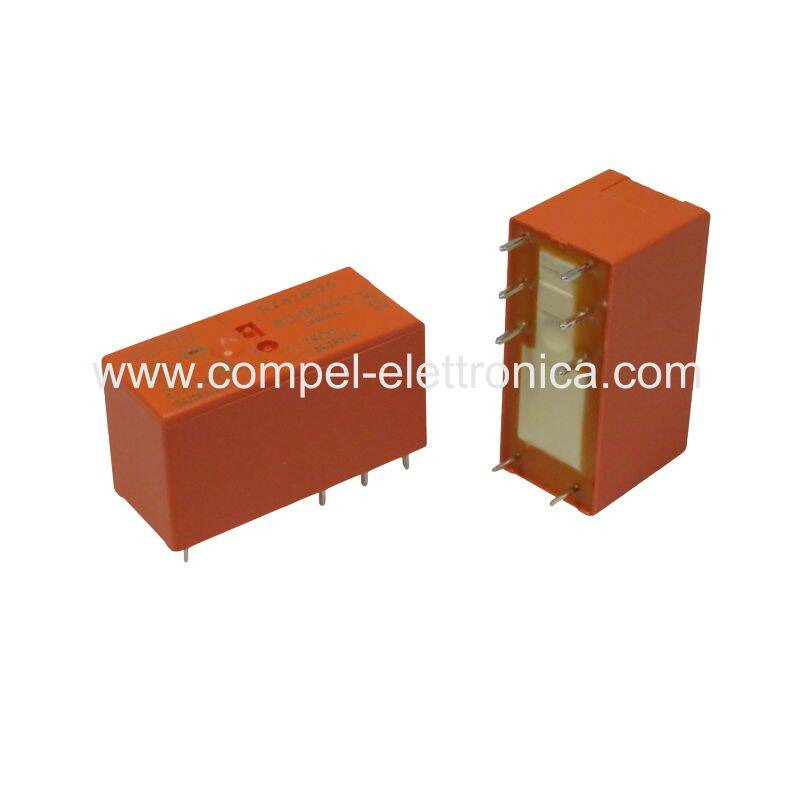

RELÈ RT424024 24Vdc 8A DPDT 2SC 8 pin P. 5mm ORIGINALI TE CONNECTIVITY

RELÈ RT424024 24Vdc 8A DPDT 2SC 8 pin P. 5mm ORIGINALI TE CONNECTIVITY

CODICE: RT424024

Prodotto disponibile
Prezzi Iva Inclusa
1 PZ
€ 3,8369
3 PZ
€ 3,3184
10 PZ
€ 2,3851
preventivo per quantità
Scheda Tecnica
Articolo: RT424024 ORIGINALI TE CONNECTIVITY
SERIE RT RELAYS
Descrizione: Relè miniatura, basso profilo, 2 scambio 8 PIN DPDT
Tensione di commutazione:250Vac
Voltaggio bobina: 24Vdc
Corrente: 8A
Corrente di bobina:14.2 mA
Resistenza bobina:1.44 kOhms
Passo pin contatti: 5mm
Dimensioni: 29x12,7x15,7mm
Mounting: PCB / CIRCUITO STAMPATO
Contenitore: SPDT singolo scambio
Produttore: ORIGINALI TE CONNECTIVITY SCHRACK
Nota informativa:
I dati presenti in questa scheda sono solo indicativi.
Per informazioni piu precise consultare i dati del produttore.
These Scheda Tecnica are indicative only, for more precise information look in the data producer.
RoHS: SI
