OPTOCOUPLER SERIE TCST

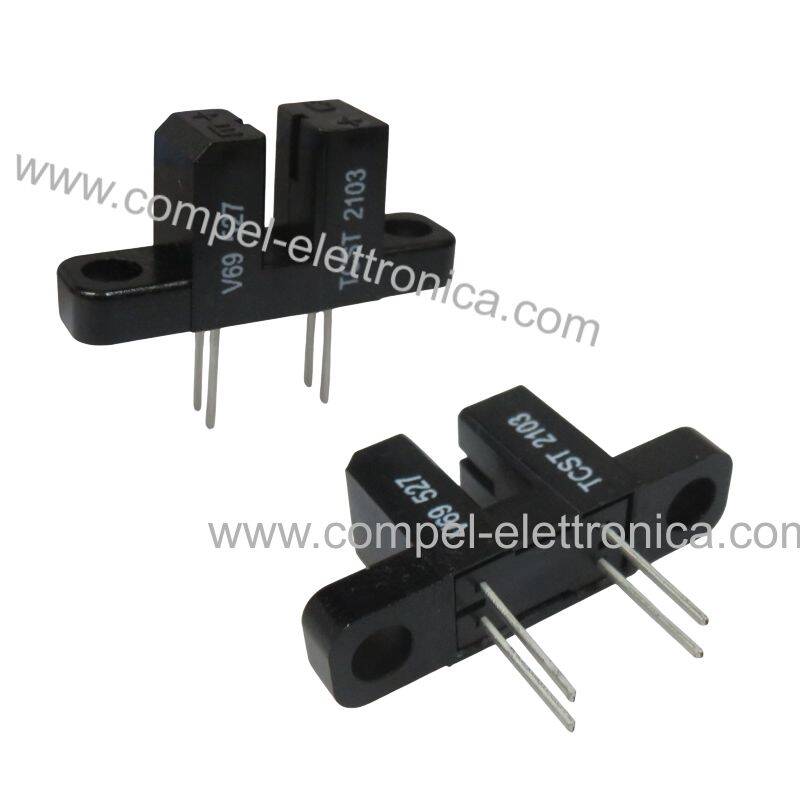

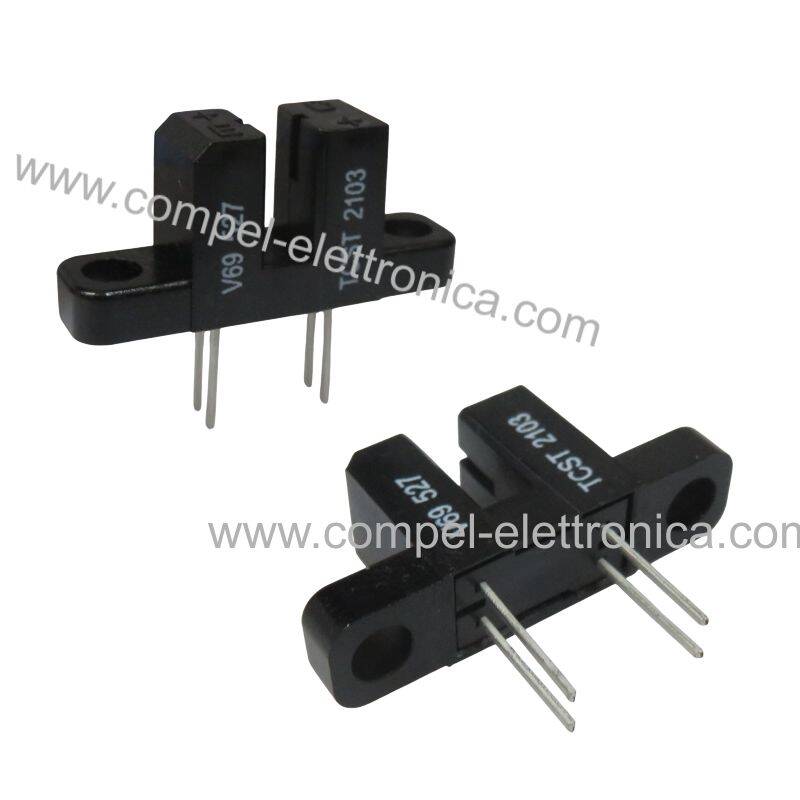

TCST 2103 OPTOCOUPLER OPTICA SENSOR ORIGINALI VISHAY TCST2103
TCST 2103 OPTOCOUPLER OPTICA SENSOR ORIGINALI VISHAY TCST2103
CODICE: TCST2103
Prezzi Iva Inclusa
1 PZ
€ 1,5555
5 PZ
€ 1,3688
10 PZ
€ 1,1200
50 PZ
€ 0,9644
Scheda Tecnica
Articolo: TCST 2103
Descrizione: OPTICAL SENSOR PHOTOTRANSISTOR
Tipo: OPTICAL SENSOR PHOTOTRANSISTOR
Input (emitter) reverse Voltage : Vr 6V
Input (emitter) Forward Corrente: IF 60 mA
Output (detector) : Collector emitter voltage (Vceo) 70
Emitter Collector voltage (Veco) 7V
Collector current (Ic) 100mA
Temperatura di funzionamento: 55 to 85°C
Aperture: 2mm
Tum-on time : (t-on) 10.0 uS
Tum-off time : (t-off) 8.0 uS
Contenitore: THT
Produttore: VISHAY
Nota informativa:
I dati presenti in questa scheda sono solo indicativi.
Per informazioni piu precise consultare i dati del produttore.
These Scheda Tecnica are indicative only, for more precise information look in the data producer.
RoHS: SI
Articolo: TCST 2103
Descrizione: OPTICAL SENSOR PHOTOTRANSISTOR
Tipo: OPTICAL SENSOR PHOTOTRANSISTOR
Input (emitter) reverse Voltage : Vr 6V
Input (emitter) Forward Corrente: IF 60 mA
Output (detector) : Collector emitter voltage (Vceo) 70
Emitter Collector voltage (Veco) 7V
Collector current (Ic) 100mA
Temperatura di funzionamento: 55 to 85°C
Aperture: 2mm
Tum-on time : (t-on) 10.0 uS
Tum-off time : (t-off) 8.0 uS
Contenitore: THT
Produttore: VISHAY
Nota informativa:
I dati presenti in questa scheda sono solo indicativi.
Per informazioni piu precise consultare i dati del produttore.
These Scheda Tecnica are indicative only, for more precise information look in the data producer.
RoHS: SI
indirizzo del produttore
IN PREPARAZIONE
IN PREPARAZIONE
indirizzo Responsabile EU
Comp.El. Componenti Elettronici
Via Campania, 20/A
09121 CAGLIARI
compel@compel-elettronica.com
Comp.El. Componenti Elettronici
Via Campania, 20/A
09121 CAGLIARI
compel@compel-elettronica.com
identificazione dei rischi
- Tenere fuori dalla portata dei bambini
